BSP Ball Valve Full Bore

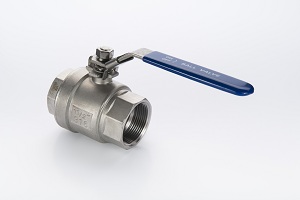

BSP Ball Valve Full Bore 2 piece lever operated

Locking Handle

Blow out proof stem

1000 PSI (69bar) Pressure rated W. O.G

Temperature rated -20° +180° C

BSP Female Ends








1/4"

3/8"

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

2 1/2"

 3"

L
49mm 49mm 57mm 65mm 78mm 90.5mm 105mm 127mm 160mm 180mm
D
12.8mm 12.8mm 15mm 20mm 25mm 32mm 38mm 50mm 65mm 80mm
H
51mm 51mm 55mm 59mm 73mm 78mm 91mm 99mm 130mm 142mm
W
95mm 95mm 95mm 110mm 135mm 135mm 165mm 165mm 215mm 215mm

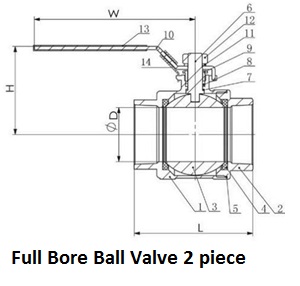

BSP Full Bore Ball Valve 2 piece Parts List

ITEM PARTS MATERIALS QUANTITY
1 BODY 316 1
2 CAP 316 1
3 BALL 316 1
4 BALL SEAT PTFE 2
5 JOINT GASKET PTFE 1
6 STEM 316 1
7 THRUST WASHER PTFE 1
8 STEM PACKING PTFE 2
9 GLAND NUT 304 1
10 HANDLE 304 1
11 STEM WASHER 304 1
12 STEM NUT 304 1
13 PLASTIC COVER Plastic 1
14 LOCK DEVICE 304 1
