The thread is Female BSP parallel

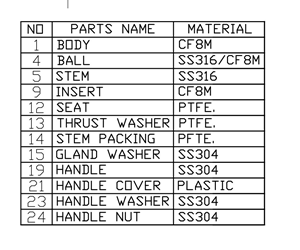

PTFE Seats and Seals
Anti- blow out Stem
Lockable Handle
Pressure rated: 1000psi 1/4" up to 1 1/4" and from 1 1/2" to 2" 800psi
Temperature -10° up to 180° C

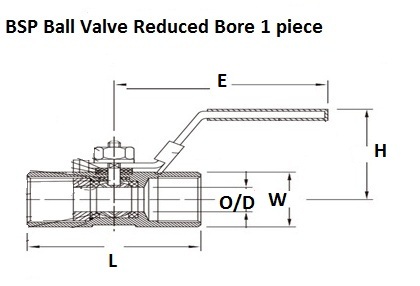

| Size | O/D | L | E | H | W | Cv | Torque | |
| 1/4" | 5 | 39 | 69 | 35 | 17 | 4 | 12.24 | |
| 3/8" | 7.2 | 44 | 79 | 36 | 21 | 4 | 18.36 | |
| 1/2 | 9.2 | 56.5 | 109 | 40 | 25 | 4.5 | 20.4 | |
| 3/4" | 12.5 | 59 | 109 | 42 | 32 | 9 | 36.72 | |
| 1” | 15 | 71 | 117.7 | 47 | 38 | 16 | 45.9 | |
| 1¼” | 20 | 78 | 117.7 | 53 | 48 | 24 | 71.4 | |
| 1½” | 25 | 83 | 157 | 62 | 53 | 37 | 91.8 | |
| 2” | 32 | 100 | 155.5 | 67 | 64 | 68 | 122.4 |
