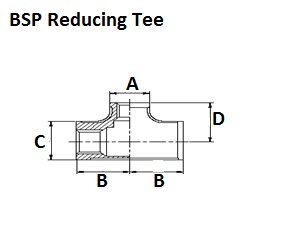

BSP Reducing Tee

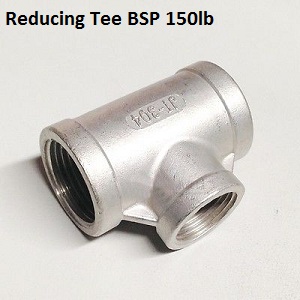

BSP Reducing Tee 150lb
Stainless Steel Grade 316
BSP Size
|
A
|
B
|
C
|
D
|
| 1/4 X 1/8 |
18 |
17 |
18 |
17 |
| 3/8 X 1/4 |
18 |
21 |
23.5 |
21 |
| 1/2 X 1/4 |
20.8 |
24 |
28.8 |
24 |
| 1/2 X3/8 |
23.3 |
26 |
28.8 |
25 |
| 3/4 X 3/8 |
23.3 |
28 |
35.8 |
28 |
| 3/4 X 1/2 |
30 |
30 |
37 |
31 |
| 1 X 1/2 |
30.5 |
32 |
44 |
33 |
| 1 X 3/4 |
35.8 |
34 |
43.3 |
35 |
| 1-1/4 X 3/4 |
35.8 |
38 |
51.4 |
40 |
| 1-1/4 X 1 |
43.3 |
40 |
51.4 |
42 |
| 1-1/2 X 3/4 |
35.8 |
38 |
57.9 |
43 |
| 1-1/2 X 1 |
43.3 |
41 |
57.9 |
45 |
| 1-1/2 X 1-1/4 |
28.8 |
45 |
70.6 |
48 |
| 2 X 3/4 |
35.8 |
41 |
70.6 |
49 |
| 2 X 1 |
43.3 |
44 |
70.6 |
51 |
| 2 X 1-1/4 |
51.4 |
48 |
70.6 |
54 |
| 2 X 1-1/2 |
57.9 |
52 |
70.6 |
55 |
