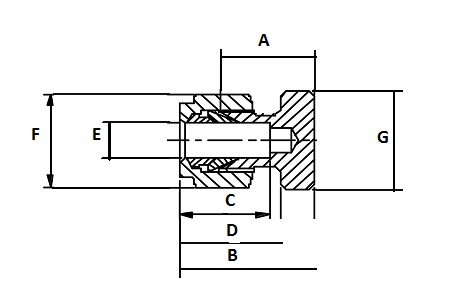

E |
A |
B |
C |
D |
F |
G |
Kg/100 |
| TUBE | HEX | HEX | |||||
| 1/8" | 13.5 | 21 | 13.5 | 16.3 | 11.1 | 11.1 | 1.5 |
| 3/16" | 14.7 | 21 | 14.3 | 16.7 | 12.7 | 11.1 | 2 |
| 1/4" | 15.9 | 23.4 | 15.1 | 17.9 | 14.3 | 14.3 | 2.3 |
| 5/16" | 17.1 | 25.4 | 16.7 | 19.5 | 15.9 | 14.3 | 3 |
| 3/8" | 18.3 | 25.8 | 16.7 | 19.5 | 17.5 | 17.5 | 3.4 |
| 1/2" | 19.1 | 29.4 | 23 | 21.8 | 22.2 | 22.2 | 6.1 |
| 5/8" | 21.4 | 30.1 | 23.8 | 21.4 | 25.4 | 23.8 | 8.4 |
| 3/4" | 23 | 32.9 | 24.6 | 21.8 | 28.6 | 28.6 | 10.9 |
| 1" | 28.6 | 41.7 | 31.4 | 26.6 | 38.1 | 38.1 | 24.1 |
