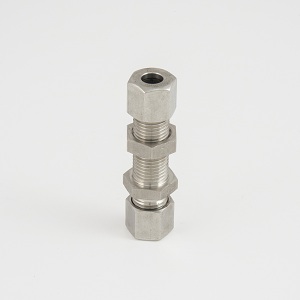

Grade 316L Stainless Steel

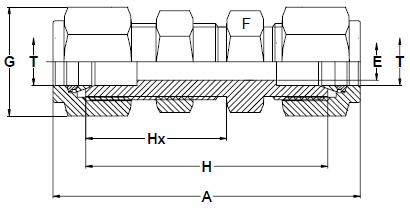

| TUBE OD | A | E | F | G | H | HX |
| INCH | MM | MM | MM | MM | MM | MM |
| 1/8" | 51.3 | 2.4 | 11 | 11 | 38.1 | 24.6 |
| 1/4" | 57.6 | 4.8 | 16 | 14 | 43 | 26.2 |
| 5/16" | 60.7 | 6.3 | 17 | 16 | 46 | 28.5 |
| 3/8" | 62.2 | 7.1 | 22 | 17 | 47.5 | 29.5 |
| 1/2" | 71.1 | 10.4 | 24 | 22 | 50.8 | 31.8 |
| 5/8" | 72.6 | 12.7 | 27 | 25 | 52.3 | 32.5 |
| 3/4" | 79 | 15.8 | 30 | 28.5 | 58.6 | 37.4 |
| 1" | 95.6 | 22.3 | 35 | 38 | 71.3 | 45.2 |
