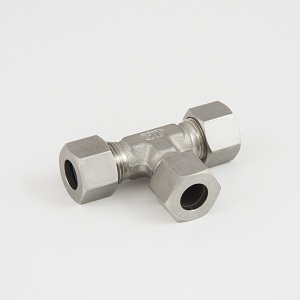

Twin Ferrule Grade 316L Stainless Steel

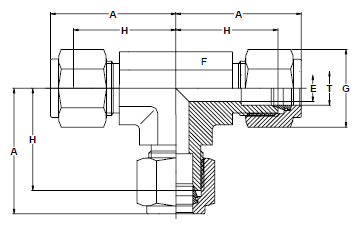

| TUBE OD | A | E | F | G | H |
| INCH | MM | MM | MM | MM | MM |
| 1/8" | 22.4 | 2.4 | 11 | 11 | 15.8 |
| 1/4" | 26.9 | 4.8 | 14 | 14 | 19.6 |
| 5/16" | 28.7 | 6.3 | 16 | 16 | 21.36 |
| 3/8" | 30.5 | 7.1 | 17 | 17 | 23.2 |
| 1/2" | 36 | 10.4 | 22 | 22 | 25.9 |
| 5/8" | 38.1 | 12.7 | 24 | 25 | 27.9 |
| 3/4" | 39.9 | 15.8 | 27 | 28.5 | 29.7 |
| 7/8" | 44.7 | 18.2 | 35 | 32 | 34.6 |
| 1" | 49 | 22.3 | 35 | 38 | 36.8 |
