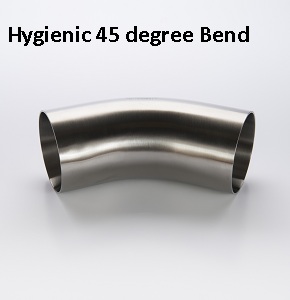

45° bends are available in Stainless Steel grades 304 and 316, the standard grade we hold in stock is 316, we can bring 304 into stock normally within 1 day. The Bends come with a bead rolled internal, this provides a smooth internal finish and eliminates any cracks or crevices. The external is satin polished. |
|
Our 45° bends are available as standard 1.5 x diameter radius. For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk |

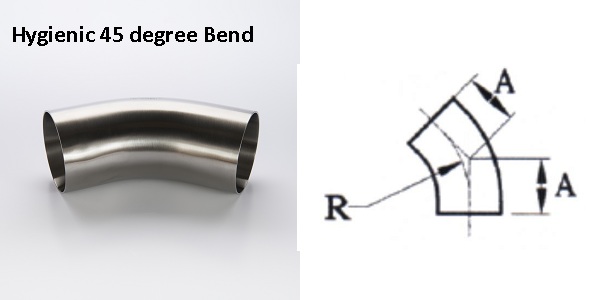

| Outside Size | Outside Size | Wall | DIM A | DIM R |
| Inch | mm | mm | mm | mm |
| 1/2” | 12.7 | 1.6 | 35 | 40 |
| 3/4” | 19.05 | 1.6 | 44 | 60 |
| 1” | 25.4 | 1.6 | 30 | 38 |
| 1 1/4” | 31.75 | 1.6 | 36 | 48 |
| 1 1/2” | 38.1 | 1.6 | 41 | 57 |
| 2” | 50.8 | 1.6 | 58 | 76 |
| 2 1/2” | 63.5 | 1.6 | 76 | 95 |
| 3” | 76.2 | 1.6 | 94 | 114 |
| 4” | 101.6 | 2 | 122 | 153 |
