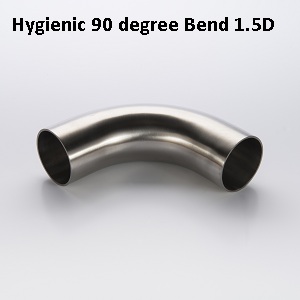

90° bends are available in Stainless Steel grades 304 and 316, The standard grade we hold in stock is 316, we can bring 304 into stock normally within 1 day. The Bends come with a bead rolled internal, this provides a smooth internal finish and eliminates any cracks or crevices.The external is satin polished. |
Our 90° bends are available as standard 1.5 x diameter radius. We also offer: 1D, 2D, 3D and 5D 90 degree Bends. We can supply any of the bends with a Male or female coupling fitting welded to one end or both. For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk |

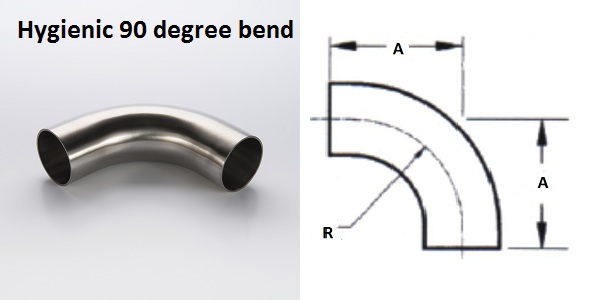

Outside Size | Outside Size | Wall | DIM A | DIM R |
Inch | mm | mm | mm | mm |
1/2” | 12.7 | 1.6 | 58 | 40 |
3/4” | 19.05 | 1.6 | 77 | 60 |
1” | 25.4 | 1.6 | 65 | 38 |
1 1/4” | 31.75 | 1.6 | 64 | 48 |
1 1/2” | 38.1 | 1.6 | 85 | 57 |
2” | 50.8 | 1.6 | 110 | 76 |
2 1/2” | 63.5 | 1.6 | 135 | 95 |
3” | 76.2 | 1.6 | 155 | 114 |
4” | 101.6 | 2 | 195 | 153 |
