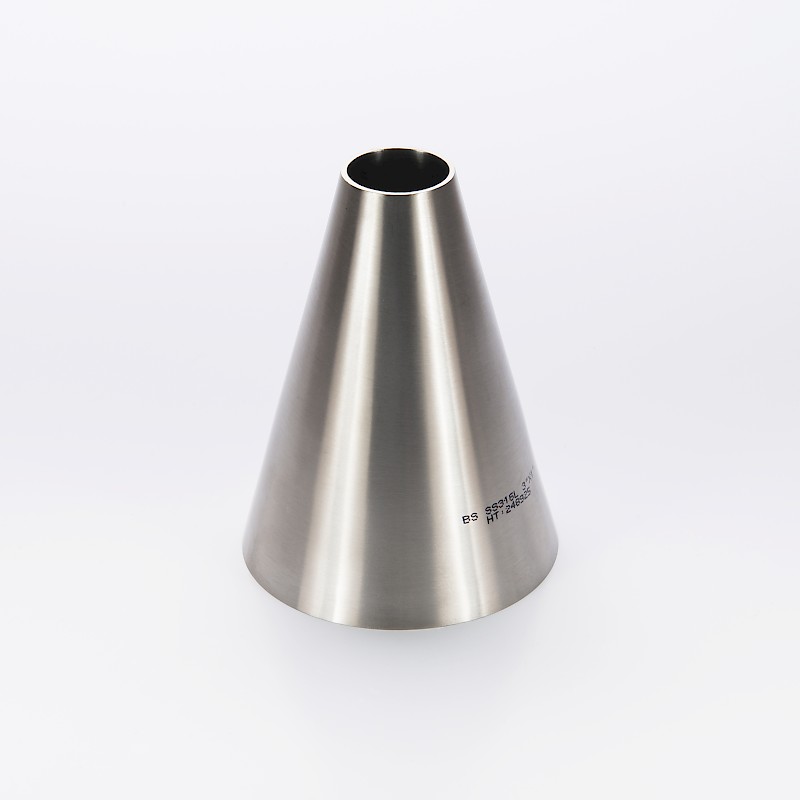

Hygienic Concentric Reducers, we stock grade 316 Dull Polished, different lengths are available on some sizes the list below is our standard stock held in Cumbernauld, if the length you are looking for isn't listed please call sales on 01236 738755 for an immediate quote or email sales@completestainless.co.uk

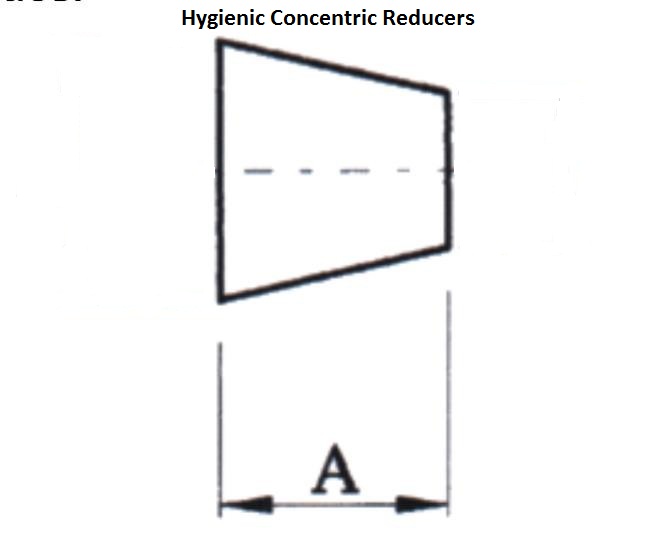

| SIZE in " | SIZE in mm | DIM A = | length |
| 3/4 x 1/2 | 19.05 x 12.7 | 25.5 | mm |
| 1 1/2 x 1/2 | 38.1 x 12.7 | 63.5 | mm |
| 1 x 1/2 | 25.4 x 12.7 | 43 | mm |
|
|
|
|
|
| 1 x 3/4 | 25.4 x 19.05 | 30 | mm |
| 1 1/2 x 3/4 | 38.1 x 19.05 | 51.5 | mm |
| 2 x 3/4 | 50.8 x 19.05 | 80 | mm |
|
|
|
|
|
| 1 1/2 x 1 | 38.1 x 25.4 | 48 | mm |
| 2 x 1 | 50.8 x 25.4 | 50.5 | mm |
| 2 1/2 x 1 | 63.5 x 25.4 | 69 | mm |
| 3 x 1 | 76.2 x 25.4 | 108 | mm |
| 4 x 1 | 1016. x 25.4 | 305 | mm |
|
|
|
|
|
| 1 1/2 x 1 1/4 | 38.1 x 31.75 | 48 | mm |
| 2 x 1 1/2 | 50.8 x 38.1 | 66.5 | mm |
| 2 1/2 x 1 1/2 | 63.5 x 38.1 | 49 | mm |
| 3 x 1 1/2 | 76.2 x 38.1 | 76 | mm |
| 4 x 1 1/2 | 101.6 x 38.1 | 62.5 | mm |
|
|
|
|
|
| 2 1/2 x 2 | 63.5 x 50.8 | 66 | mm |
| 3 x2 | 76.2 x 50.8 | 56 | mm |
| 4 x 2 | 101.6 x 50.8 | 102 | mm |
|
|
|
|
|
| 3 x 2 1/2 | 76.2 x 63.5 | 72.5 | mm |
| 4 x 2 1/2 | 101.6 x 63.5 | 76.5 | mm |
|
|
|
|
|
| 4 x 3 | 101.6 x 76.2 | 50.5 | mm |
