| Internal surface Ra<0.8µm, internal weld bead RA<1.6um | ||||||||

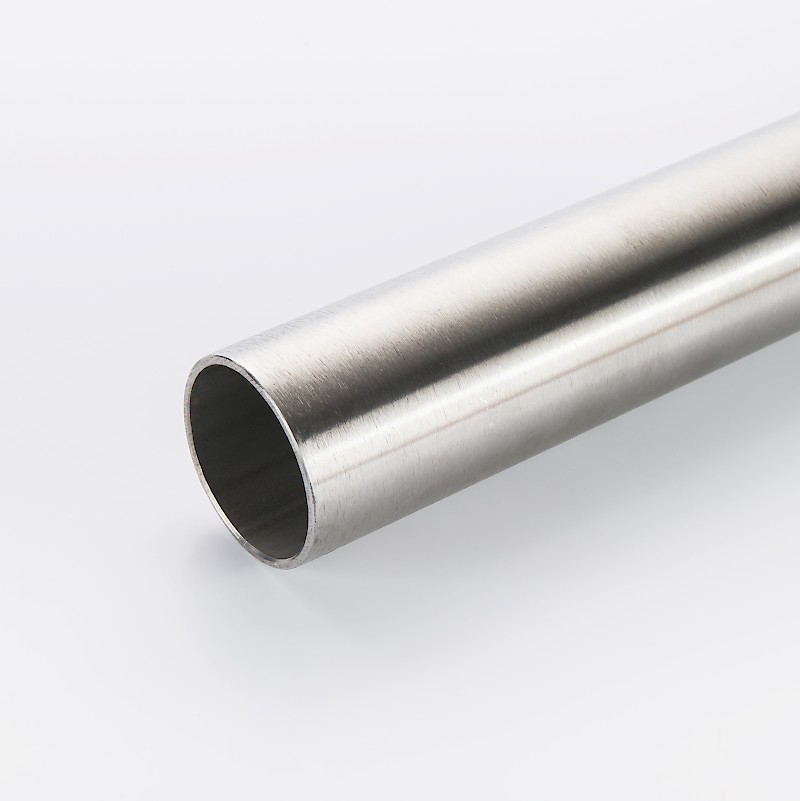

| Weld Bead removed Dairy Tube for hygienic applications | ||||||||
| Manufactured to EN10357 hygienic standard | ||||||||
| Available in grades 304 and 316 | ||||||||
| Dull Polished external 180—220 grit | ||||||||
| Available in sizes from 1/2” - 4” OD | ||||||||
| Supplied un-annealed for maximum value | ||||||||
| Available with 3.1 mill certificates | ||||||||
| Supplied in accordance with our ISO quality system | ||||||||
| SIZE O/D | Wall Thickness | Kgs per Mtr | ||||||
| 1/2” | 1.5mm | 0.51 | ||||||
| 3/4” | 1.5mm | 0.81 | ||||||
| 1” | 1.5mm | 0.99 | ||||||
| 1.5” | 1.5mm | 1.51 | ||||||
| 2” | 1.5mm | 1.88 | ||||||
| 2.5” | 1.5mm | 2.49 | ||||||
| 3” | 1.5mm | 3.01 | ||||||
| 4” | 1.5mm | 4.03 | ||||||
| 4” | 2mm | 5.02 | ||||||
| Metric sizes available include 129mm, 154mm and 204mm from stock with a range of hygienic Clamp or DIN fittings to suit. | ||||||||
