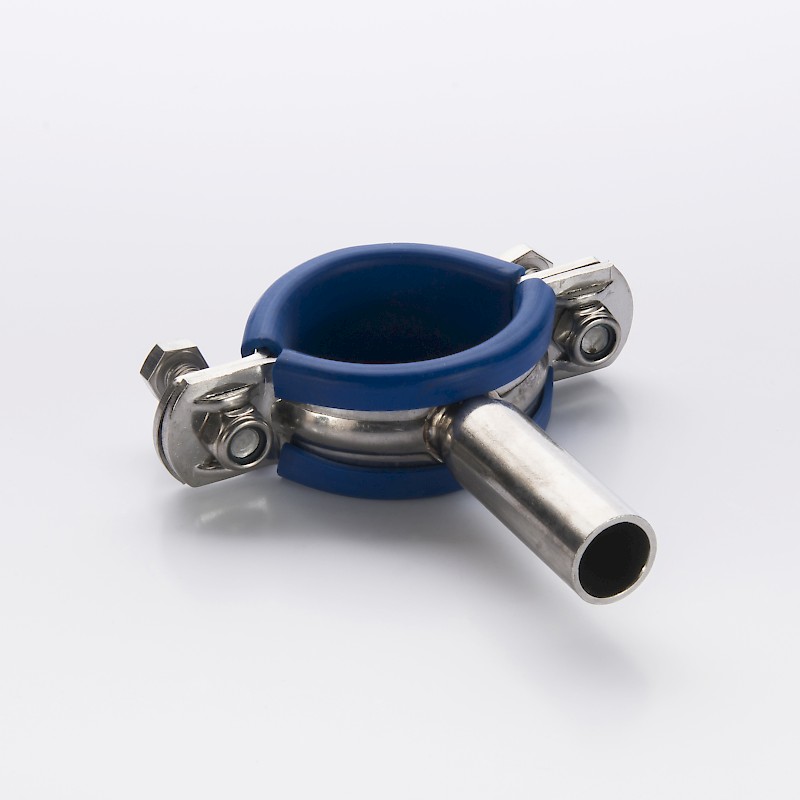

Hygienic Anti Vibration Tube Clamps, Stainless Steel Grade 304 we supply with a 19.05 tube stem or a M10 boss. For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk

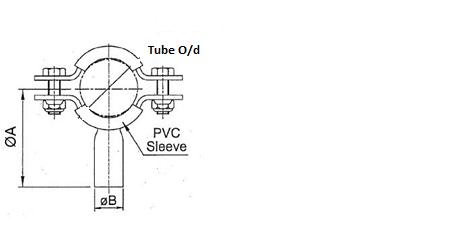

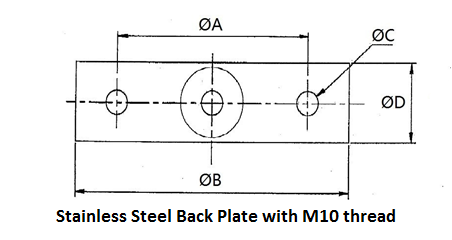

We also stock a Stainless Steel back plate to attach to M10 stems, see drawing bottom right.
|
|
19mm o/d stem |
M10 Boss |
1/2" BSP Boss |
||||
| Tube OD | Dim A | Dim B | Dim A | Dim B | Dim A | Dim B | |
| Inch | mm | mm | mm | mm | mm | mm | mm |
| 1/2" | 12.7 | 90 | 16 | 28 | 24.5 | 28 | 24.5 |
| 3/4" | 19 | 90 | 16 | 28 | 24.5 | 28 | 24.5 |
| 1 | 25.4 | 90 | 19 | 28 | 24.5 | 28 | 24.5 |
| 1 1/2" | 38.1 | 90 | 19 | 28 | 24.5 | 28 | 24.5 |
| 2 | 50.8 | 90 | 19 | 28 | 24.5 | 28 | 24.5 |
| 2 1/2" | 63.5 | 90 | 19 | 28 | 24.5 | 28 | 24.5 |
| 3 | 76.2 | 90 | 19 | 28 | 24.5 | 28 | 24.5 |
| 4 | 101.6 | 90 | 19 | 28 | 24.5 | 28 | 24.5 |
| 5 | 129 | 150 | 19 | 28 | 24.5 | 28 | 24.5 |
| 6 | 154 | 150 | 19 | 28 | 24.5 | 28 | 24.5 |
| 8 | 204 | 150 | 19 | 28 | 24.5 | 28 | 24.5 |
