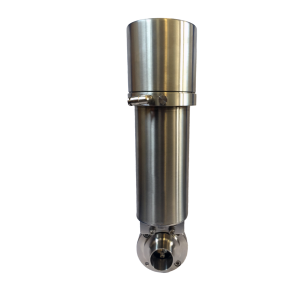

Butterfly Valve Actuator Control Box

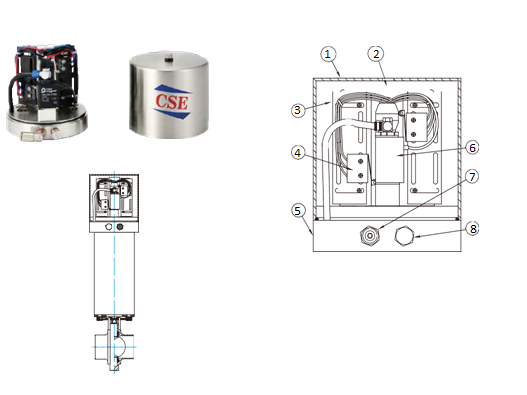

Control Box Parts List

Item Parts name Q'TY Material
1 Cover 1 PC or St.St 304
2 Switch plate 1 St.St 304
3 Plastic hanger 2 St.St 304
4 Micro switch 2 3A 125VAC.
      30VDC
      P.O.M
5 Air manifold 1 (Plastic) or St.St 304
6 Electrovalve 1 DC24  3.0W
7 Air connection 1 Cu
8 E/N connect 1 St.St 304
