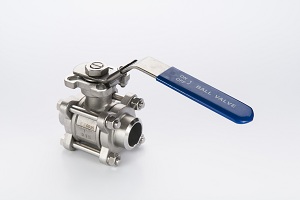

Stainless Steel Hygienic Ball Valves with Lockable Handle
The Valves are available with Plain Ends
Tri Clover Ferrule Ends
RJT Male/ Male Ends
We hold a large volume of Valves in stock for immediate despatch .
Please call Sales for an immediate quote on 01236 738755 or email sales@completestainless.co.uk
Please scroll down for Dimensions and information
| o/d Tube | L | L | L | ||||||
| Size | A | B | C | D | E | Butt Weld | Clamp End | RJT M/M | Torque |
| Inch | mm | mm | mm | mm | mm | mm | mm | mm | LBS |
| 1/2” | 106 | 52 | 9.5 | 25.2 | 18 | 89 | 89 | N/A | 40 |
| 3/4” | 106 | 55 | 15.9 | 25.2 | 21 | 101 | 101 | N/A | 64 |
| 1” | 135 | 70 | 22.2 | 50.5 | 25 | 114 | 114 | 167 | 130 |
| 1.5” | 182 | 89 | 35 | 50.5 | 28 | 140 | 140 | 193 | 195 |
| 2” | 182 | 97 | 47.6 | 64 | 25 | 156 | 156 | 209 | 250 |
| 2.5” | 263 | 140 | 60.2 | 77.5 | 35 | 197 | 197 | 250 | 400 |
| 3” | 263 | 152 | 73 | 91 | 43 | 229 | 229 | 282 | 600 |
| 4” | 285 | 184 | 97.4 | 119 | 37 | 241 | 241 | 294 | 1200 |

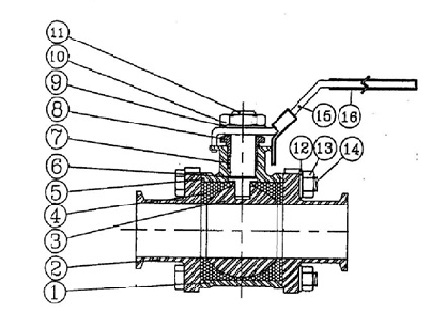

| No | Part name | QTY | Material | |||
| 1 | Body | 1 | SS316 | |||
| 2 | Cap | 2 | SS316 | |||
| 3 | Ball | 1 | SS316 | |||
| 4 | Seat | 2 | Pipe | |||
| 5 | Gasket | 2 | PTFE | |||
| 6 | Thrust Washer | 1 | PTFE | |||
| 7 | Stem Packing | 1 | SS304 | |||
| 8 | Gland Nut | 1 | SS304 | |||
| 9 | Handle Washer | 1 | SS304 | |||
| 10 | Handle Nut | 1 | SS304 | |||
| 11 | Stem | 1 | SS304 | |||
| 12 | Bolt Washer | 4..8..12 | SS304 | |||
| 13 | Nut | 4..8..12 | SS304 | |||
| 14 | Bolt | 4..6 | SS304 | |||
| 15 | Handle | 1 | SS304 | |||
| 16 | Handle Cover | 1 | Plastic | |||
| Investment Casting with blow out proof stem |
| SS316/ EN10213 1.4408/ ASTM A-351 GR CF8M |

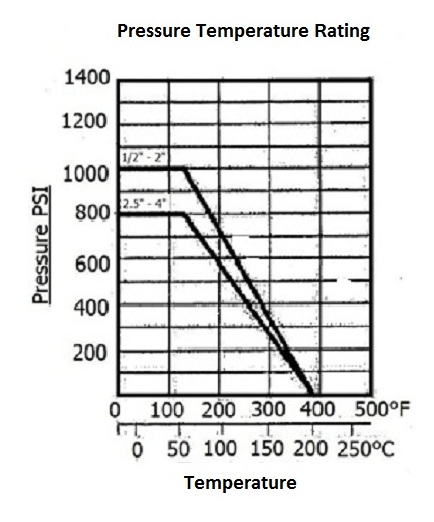

| Temperature range of –20°c to 180°c |
| Lockable handle as standard |
| Available with a range of end connections |
| Sanitary cavity filled seat design |
