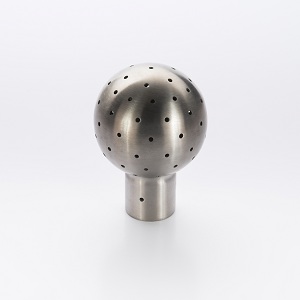

Spray balls offer a low cost, low maintenance option for internal cleaning of vessels. Currently available in a 360° spray pattern, they are available to suit 3/4",1" and 1 1/2" tube inlets, they are held in place by a C spring clip.
Available in Stainless Steel Grade 316
| Flow Rate | |||||||

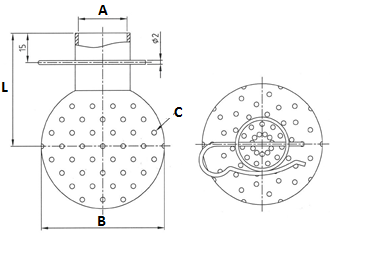

| Ball Dia | hole size | Spray Circle | CU mtr/Hour | ||||
| A= | B= | C= | L= | Height | fixing | Dia in mtrs | at 1 bar |
| 19.05 o/d | 40 dia | 1.6mm | 40mm | 45mm | Clip | 0.8-1.5 | 2.8 |
| 1.0-2.0 | 5.1 | ||||||
| 25.4 o/d | 64 dia | 2.5mm | 58mm | 85mm | Clip | 1.5 - 2.5 | 3 |
| 1.8 - 2.5 | 7 | ||||||
| 2.0 - 3.0 | 9.8 | ||||||
| 2.5 - 3.5 | 12.8 | ||||||
| 3.0 - 4.0 | 15.3 | ||||||
| 38.1 o/d | 64 dia | 2.5mm | 58mm | 85mm | Clip | 2.6 | 18.8 |
