Nominal Bore 45 Degree Bends

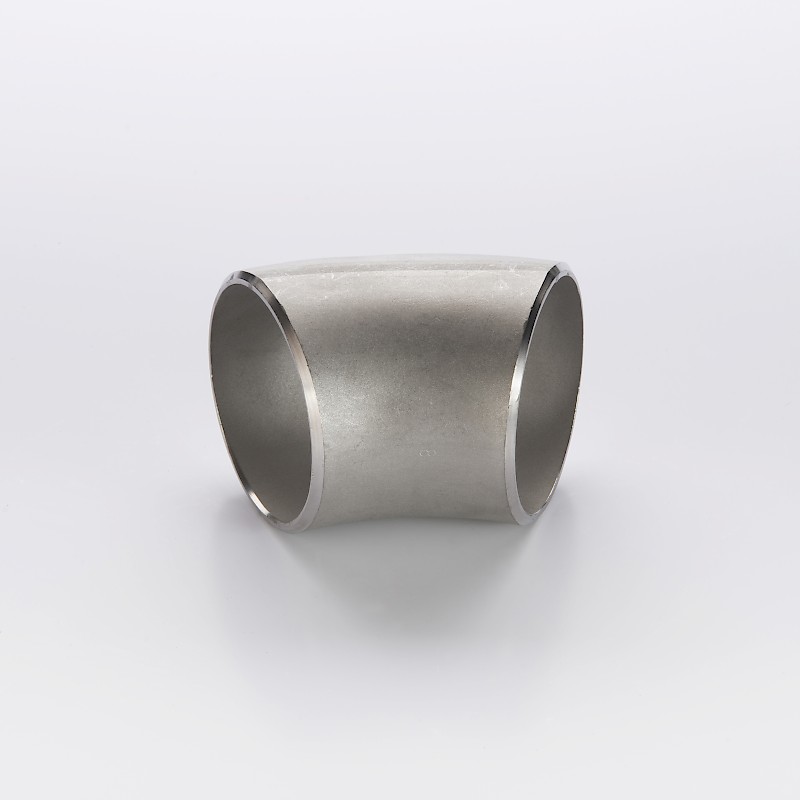

STAINLESS STEEL 45 DEGREE BENDS / ELBOWS

Available in grades 304/304L and 316/316L

Seamless and Welded available from stock

For wall thickness see table on Welded Pipe page.

Nominal D = Outside B = 45 Deg
Pipe Size Diameter Elbows
mm mm
1/2" 21 16
3/4" 27 11
1" 33 22
11/4" 42 25
11/2" 48 29
2" 60 35
2 1/2" 73 44
3 89 51
3 1/2" 102 57
4 114 64
5 141 79
6 168 95
8 219 127
10 273 159
12 324 190
14 356 222
16 406 254
18 457 286
20 508 318
22 559 343
24 610 381
26 660 406
28 711 438
30 762 470
32 813 502
