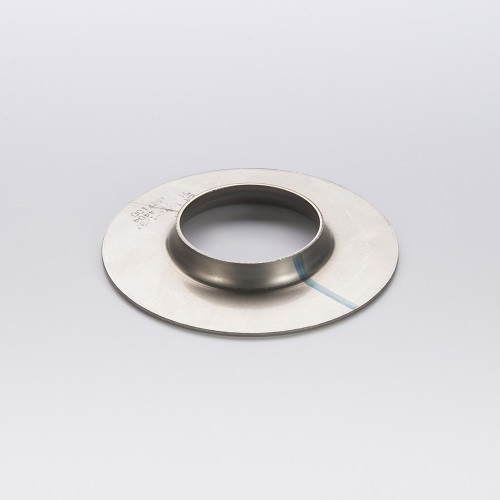

STAINLESS STEEL NOMINAL BORE PRESSED COLLARS
Available in grades 304/304L and 316/316L
We carry a full range of Backing Flanges to suit the Collars, see Nominal Bore Backing Flange Page.
For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk

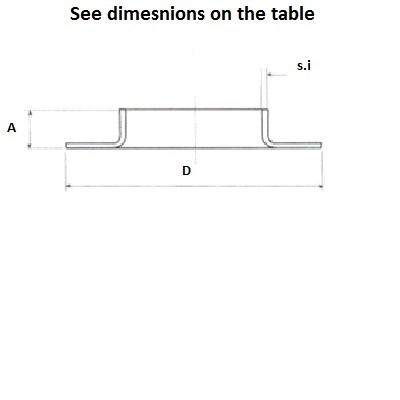

| Nominal Pipe | Pipe O/D in MM | S.I = Wall thick | A= Height | D= Overall Diameter |
| 1" | 33 | 2 | 9mm | 69mm |
| 1 1/4" | 42 | 2 | 10mm | 78mm |
| 1 1/2" | 48 | 2 | 10mm | 89mm |
| 2" | 60 | 2.5 | 12mm | 102mm |
| 2 1/2" | 73 | 2.5 | 12mm | 122mm |
| 3" | 89 | 2.5 | 12mm | 139mm |
| 3 1/2" | 102 | 2.5 | 12mm | 158mm |
| 4" | 114 | 3 | 16mm | 158mm |
| 5" | 141 | 3 | 16mm | 188mm |
| 6" | 168 | 3 | 17mm | 212mm |
| 8" | 219 | 3 | 18mm | 269mm |
| 10" | 273 | 4 | 18mm | 321mm |
| 12" | 324 | 4 | 19mm | 370mm |
| 14" | 356 | 4 | 21mm | 431mm |
| 16" | 406 | 4 | 21mm | 482mm |
| 18" | 457 | 4 | 25mm | 532mm |
| 20" | 508 | 4 | 25mm | 585mm |
| 24" | 610 | 4 | 25mm | 685mm |
