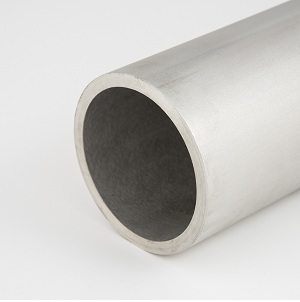

STAINLESS STEEL SEAMLESS PIPE ASTM A312 Available from stock in grades 304/304L, 316/316L......... 1/4" Nominal Bore up to 12"
Also available in Stainless Steel Grade 904L delivery 3-5 days.
STAINLESS STEEL SEAMLESS PIPE ASTM A790 Available in Duplex UNS31803........... 1/4" Nominal Bore up to 8"
Random lengths vary from 5m up to 7m, we can offer cut pieces on all Seamless Pipe
We also stock Seamless Fittings, Flanges and Valves to suit this range.
| OD in | Wall Thickness | NB Size | Schedule | Kg/m |
| mm | mm | |||
| 13.72 | 1.65 | ¼ | 10S | 0.5 |
| 13.72 | 2.24 | ¼ | 40S | 0.64 |
| 13.72 | 3.02 | ¼ | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.2 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 21.34 | 4.78 | 1/2 | 160S | 1.98 |
| 21.34 | 7.47 | 1/2 | xx strong | 2.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.3 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 26.67 | 5.56 | 3/4 | 160S | 2.94 |
| 26.67 | 7.82 | 3/4 | xx strong | 3.69 |
| 33.4 | 2.77 | 1 | 10S | 2.13 |
| 33.4 | 3.38 | 1 | 40S | 2.54 |
| 33.4 | 4.55 | 1 | 80S | 3.29 |
| 33.4 | 6.35 | 1 | 160S | 4.3 |
| 33.4 | 9.09 | 1 | xx strong | 5.75 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.35 | 1¼ | 160S | 5.69 |
| 42.16 | 9.7 | 1¼ | xx strong | 7.88 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 48.26 | 7.14 | 1½ | 160S | 7.35 |
| 48.26 | 10.16 | 1½ | xx strong | 9.69 |
| o/d in mm | wall in mm | NB Size | Schedule | kg/mtr |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.68 | 2 | 40S | 5.52 |
| 60.33 | 5.08 | 2 | 80S | 7.6 |
| 60.33 | 8.74 | 2 | 160S | 11.29 |
| 60.33 | 11.07 | 2 | xx strong | 13.65 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 73.03 | 9.53 | 2½ | 160S | 15.15 |
| 73.03 | 14.02 | 2½ | xx strong | 20.7 |
| 88.9 | 3.05 | 3 | 10S | 6.56 |
| 88.9 | 5.49 | 3 | 40S | 11.47 |
| 88.9 | 7.62 | 3 | 80S | 15.51 |
| 88.9 | 11.13 | 3 | 160S | 21.67 |
| 88.9 | 15.24 | 3 | xx strong | 28.09 |
| 101.6 | 3.05 | 3½ | 10S | 7.53 |
| 101.6 | 5.74 | 3½ | 40S | 13.78 |
| 101.6 | 8.08 | 3½ | 80S | 18.92 |
| 114.3 | 3.05 | 4 | 10S | 8.5 |
| 114.3 | 6.02 | 4 | 40S | 16.32 |
| 114.3 | 8.56 | 4 | 80S | 22.67 |
| 114.3 | 13.49 | 4 | 160S | 34.05 |
| 114.3 | 17.12 | 4 | xx strong | 41.63 |
| 141.3 | 3.4 | 5 | 10S | 11.6 |
| 141.3 | 6.55 | 5 | 40S | 22.1 |
| 141.3 | 9.53 | 5 | 80S | 31.44 |
| 141.3 | 15.88 | 5 | 160S | 49.87 |
| 141.3 | 19.05 | 5 | xx strong | 58.28 |
| O/d in mm | wall in mm | NB Size | Schedule | Kg/Mtr |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120S | 54.75 |
| 168.28 | 18.26 | 6 | 160S | 68.59 |
| 168.28 | 21.95 | 6 | xx strong | 80.36 |
| 219.08 | 3.76 | 8 | 10S | 20 |
| 219.08 | 8.18 | 8 | 40S | 43.2 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120S | 91.3 |
| 219.08 | 23.01 | 8 | 160S | 112.97 |
| 273.05 | 4.19 | 10 | 10S | 27.8 |
| 273.05 | 9.27 | 10 | 40S | 60.3 |
| 273.05 | 12.7 | 10 | 80S | 81.6 |
| 323.85 | 4.57 | 12 | 10S | 36 |
| 323.85 | 9.53 | 12 | 40S | 73.9 |
| 323.85 | 12.7 | 12 | 80S | 97.5 |
