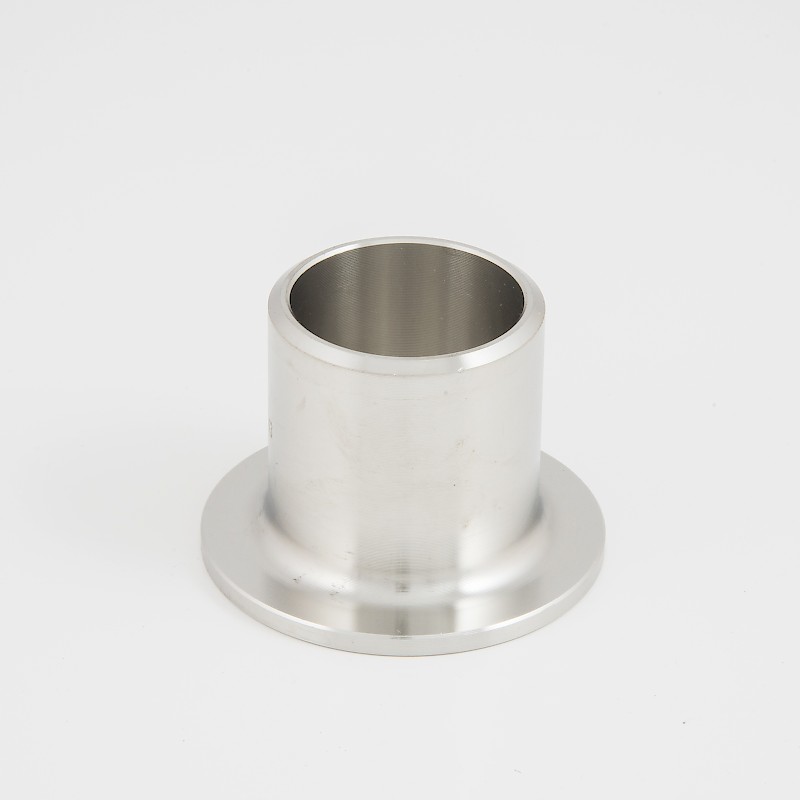

STAINLESS STEEL NOMINAL BORE LAP JOINT STUB END TYPE A
Available in Grades 304/304L and 316/316L
Welded available in all sizes listed below in Schedule 10s and 40s
Seamless available up to 12" in Schedule 10s, 40s and 80s
We also stock a full range of backing flanges to suit please see Nominal Bore Backing Flange Page.
| Nominal | Outside | F=Length | R=Radius | G= Diameter |
| Pipe | Diameter | of Fillet | of Lap | |
| Size | at Bevel | |||
| mm | mm | mm | mm | |
| 1/2" | 21 | 76 | 3.2 | 35 |
| 3/4" | 27 | 76 | 3.2 | 43 |
| 1" | 33 | 102 | 3.2 | 51 |
| 1 1/4" | 42 | 102 | 4.8 | 64 |
| 1 1/2" | 48 | 102 | 6.4 | 73 |
| 2" | 60 | 152 | 7.9 | 92 |
| 2 1/2" | 73 | 152 | 7.9 | 105 |
| 3" | 89 | 152 | 9.5 | 127 |
| 3 1/2" | 102 | 152 | 9.5 | 140 |
| 4" | 114 | 152 | 11.1 | 157 |
| 5" | 141 | 203 | 11.1 | 186 |
| 6" | 168 | 203 | 12.7 | 216 |
| 8" | 219 | 203 | 12.7 | 270 |
| 10" | 273 | 254 | 12.7 | 324 |
| 12" | 324 | 254 | 12.7 | 381 |
| 14" | 356 | 305 | 12.7 | 413 |
| 16" | 406 | 305 | 12.7 | 470 |
| 18" | 457 | 305 | 12.7 | 533 |
| 20" | 508 | 305 | 12.7 | 584 |
| 22" | 559 | 305 | 12.7 | 641 |
| 24" | 610 | 305 | 12.7 | 692 |
