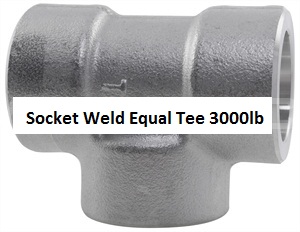

Available in Stainless Steel Grades 304L and 316L
For an immediate quote, call 01236 738755 or email sales@completestainless.co.uk

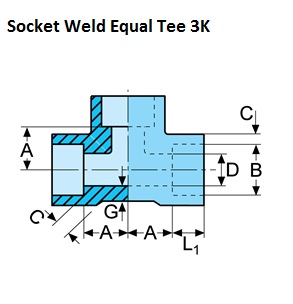

| B | L1 | C | G | D | A |
Weight |
|
| NB Size | mm | socket | mm | mm | mm | mm | KG each |
| 1/4" |
14.2 |
9.53 |
3.3 |
3.02 |
8.86 |
11.11 |
0.11 |
| 3/8" | 17.6 | 9.53 | 3.51 | 3.2 | 12.14 | 13.49 | 0.16 |
| 1/2" | 21.8 | 9.53 | 4.09 | 3.73 | 15.42 | 15.88 | 0.34 |
| 3/4" | 27.2 | 12.5 | 4.27 | 3.91 | 20.55 | 19.05 | 0.41 |
| 1 |
33.9 |
12.5 |
4.98 |
4.55 |
26.26 |
22.23 |
0.65 |
| 1¼ | 42.7 | 12.5 | 5.28 | 4.85 | 34.67 | 26.99 | 0.95 |
| 1½ | 48.8 | 12.5 | 5.54 | 5.08 | 40.51 | 31.75 | 1.33 |
| 2 | 61.2 | 16 | 6.05 | 5.54 | 52.12 | 38.1 | 2.2 |
