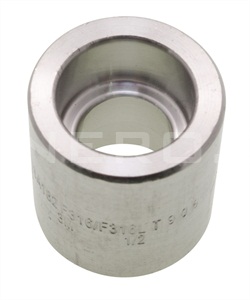

Available in Stainless Steel Grades 304L and 316L
For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

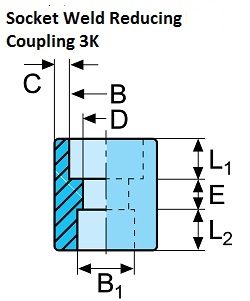

| NB Pipe Size | B | B1 | L1 | L2 | C | D | E | Weight |
| inches | mm | socket | mm | mm | mm | mm | mm | kg each |
| 3/8–1/4 | 17.6 | 14.2 | 10 | 10 | 3.51 | 8.86 | 6.35 | 0.08 |
| 1/2–3/8 | 21.8 | 17.6 | 10 | 10 | 4.09 | 12.14 | 9.53 | 0.12 |
| 3/4–1/2 | 27.2 | 21.8 | 12.5 | 9.5 | 4.27 | 15.42 | 12.7 | 0.2 |
| 1–3/4 | 33.9 | 27.2 | 12.5 | 12.7 | 4.98 | 20.55 | 12.7 | 0.3 |
| 1–1/2 | 33.9 | 17.6 | 12.5 | 10 | 4.98 | 15.42 | 12.7 | 0.3 |
| 1¼–1 | 42.7 | 33.9 | 13 | 10 | 5.28 | 26.26 | 12.7 | 0.4 |
| 1½–1 | 48.8 | 33.9 | 13 | 10 | 5.54 | 34.67 | 12.7 | 0.5 |
| 1½–1¼ | 48.8 | 42.7 | 13 | 10 | 5.54 | 34.67 | 12.7 | 0.55 |
| 2–1½ | 61.2 | 48.8 | 16 | 12.7 | 6.05 | 40.51 | 22.23 | 0.95 |
